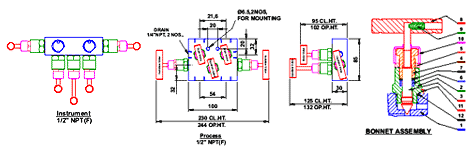

Stainless Steel 5 values Straight Type :



Stainless Steel 5 values Straight Type




Stainless Steel Straight Type
NO DESCRIPTION QTY MATERIAL
1 BODY 1 SS 316
2 BONNET 1 SS 316
3 STEM 1 SS 316
4 BONNET PUSHER 1 SS316
5 LOCK NUT 1 SS 316
6 PACKING 1 TEFLON
7 WASHER 1 SS 316
8 HANDLE 1 SS 304
9 GRUB SCREW 1 SS
10 DUST CAP 1 PLASTIC
11 LOCKING PIN 1 SS 304
12 BONNET SEAL 1 TEFLON

FEATURES :
5 VALVE MANIFOLDS (Straight TYPE)

  • 5 valve manifolds are designed for remote or separate mounting. Connecting from process side 1/2" NPT(F) and Instrument side 1/2" NPT(F) Connecting system impulse lines and transmitters, having simple five valves configuration which allows for easy two block or Isolate, two, one Bleed or Vent valve calibration of a static pressure transmitter or gauge.
  • Bleed/vent connection with s.s. plug will be provided on request.
  • Approximate weight : xxx Kg (xxx Lbs.).
  • Heat code traceability
BONNET ASSEMBLY

  • Screwed bonnet design.
  • Bonnet-back seated blow out proof. - Spindle - Ground and thread rolled.
  • Spindle tip-Non rotating tip shut off type - stellited, Regulating-stellited and soft seated.
  • Bonnet pusher - silver plated for anti galling freezing for increased stem cycle life
  • Dust cap protects stem threads from externals contamination.
  • Leak tight seal with low operating torque.
TECHNICAL SPECFICATIONS
