Stainless Steel 3 values Tee Type :

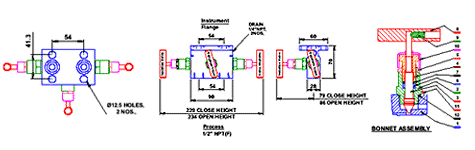

Stainless Steel 3 values Tee Type





Stainless Steel TEE Type
NO DESCRIPTION QTY MATERIAL
1 BODY 1 SS 316
2 BONNET 1 SS 316
3 STEM 1 SS 316
4 BONNET PUSHER 1 SS316
5 LOCK NUT 1 SS 316
6 PACKING 1 TEFLON
7 WASHER 1 SS 316
8 HANDLE 1 SS 304
9 GRUB SCREW 1 SS
10 DUST CAP 1 PLASTIC
11 LOCKING PIN 1 SS 304
12 BONNET SEAL 1 TEFLON

FEATURES :
3 VALVE MANIFOLDS (TEE TYPE)

  • 3 valve manifolds are designed for remote or separate mounting.Connecting from process side 1/2" NPT(F) and Instrument side 1/2" NPT(F) Connecting system impulse lines and transmitters, having simple three valves configuration which allows for easy two block or Isolate, one Equaliser valve calibration of a static pressure transmitter or gauge.
  • Bleed/vent connection with s.s. plug will be provided on request.
  • Approximate weight : xxx Kg (xxx Lbs.).
  • Heat code traceability
BONNET ASSEMBLY

  • Screwed bonnet design.
  • Bonnet-back seated blow out proof.
  • Spindle-Ground and thread rolled.
  • Spindle tip-Non rotating tip shut off type - stellited,Regulating-stellited and soft seated.
  • Bonnet pusher - silver plated for anti galling freezing for
    increased stem cycle life.
  • Dust cap protects stem threads from externals contamination.

  • Leak tight seal with low operating torque.
TECHNICAL SPECFICATIONS

Size : 1/4", 1/2"
End connection : NPT,BSPT,Socket weld.
Working Pressure : 6000 Psi (413 Bar)
Temperature Rating : PTFE 450 Deg. F (232 Deg.C) Grafoil 700 Deg. F(371 Deg. C)
Material of construction : SS 316, SS 304, Monel,C.S.
Optional Sour Gas service valves are available confirming to NACE Std. MR -
01 - 75
Stem packing : PTFE, Grafoil.
Orifice : Dia. 4.0
All valves are 100% Factory tested prior to shipment.

APPLICATIONS
Refineries,liquid patroleum gas processing plant,petro-chemical plants, systems difficult to shur off due to solid contents dust, rust, dirt etc.

MANIFOLDS SELECTION INFORMATION DATA
Pressure &2500

TESTING
  • Pneumatic Seat test is performed at 1/4 of working pressure.
  • Hydrostatic shell test is performed at 1.5 times the working pressure.
  • Optional test are available upon request.
LUBRICATIONS
Dye Molly Sulphide.
